Glass Line System is the aluminium system designed for our own Section Profile.
It is well-designed, water tightness and wind load resistance protection. It also has a water drainage system that prevent water from flowing back inside the room. It supports all types of usage such as sliding system, casement system, awning system and fixed system, which can be divided into 2 series.

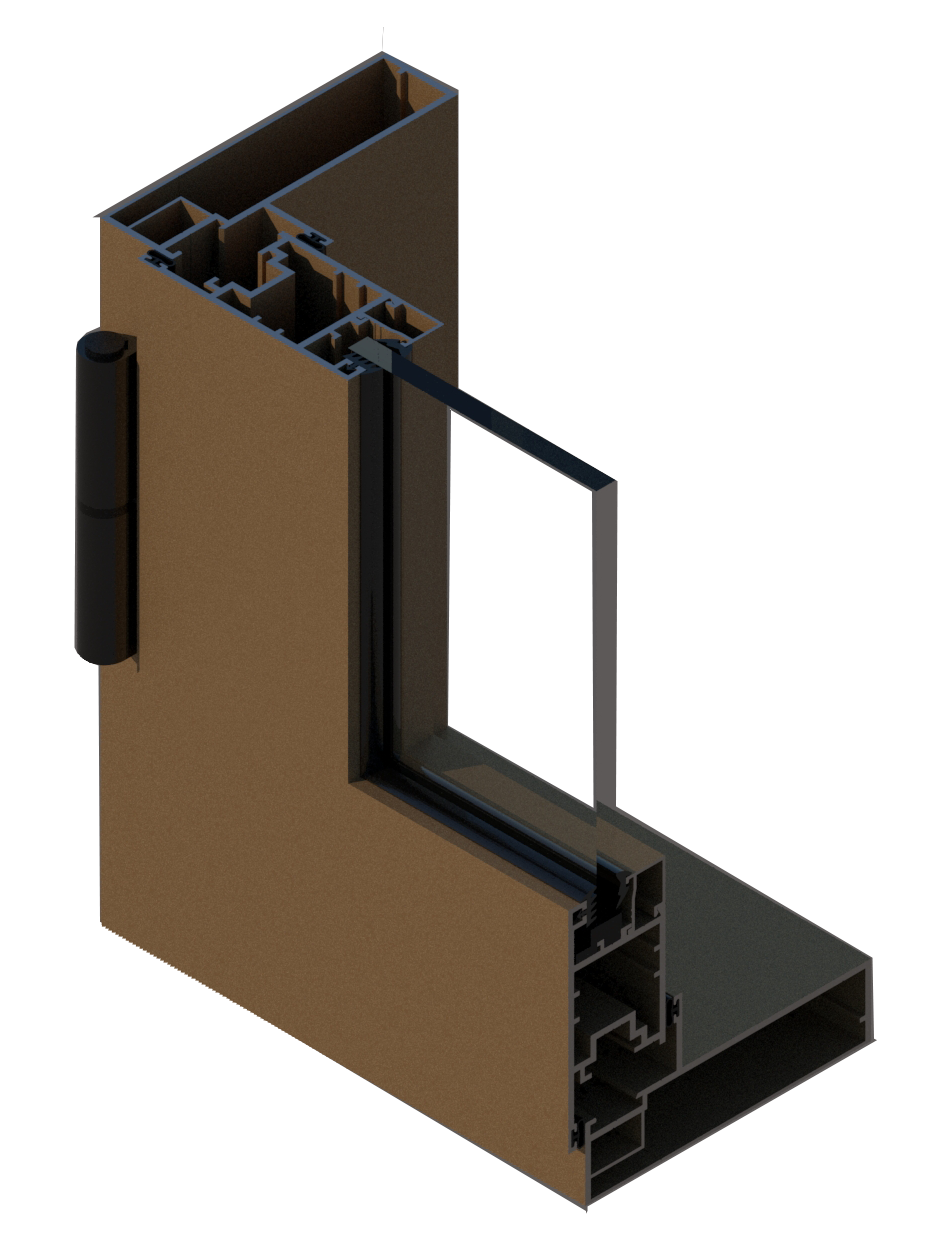

Side Hung Open Out
This system is suitable for windows and doors where it has 2 layer profile (Euro Profile)
renowned for water drainage, air tightness, soundproof and multi point lock for highest safety. We have various types, color and models of aluminium which can be used for residential, resort or high-rise buildings.
Is an aluminum system used for sliding doors up to 3.0 meters, support a total weight of up to 150 kilograms per door.
It can also support glass thickness up to 20 mm, aluminium thickness 2.0 mm, the width of the vent 70 mm. The frame width 102 mm. for 2 rails and 147.5 mm. for 3 rails. The highlight of the product is high strength, durable to use with water drainage and tamper prevention systems, suitable for homes or buildings that require the transparency of the door set and require high light to enter the room.
Elegance 3 Rails

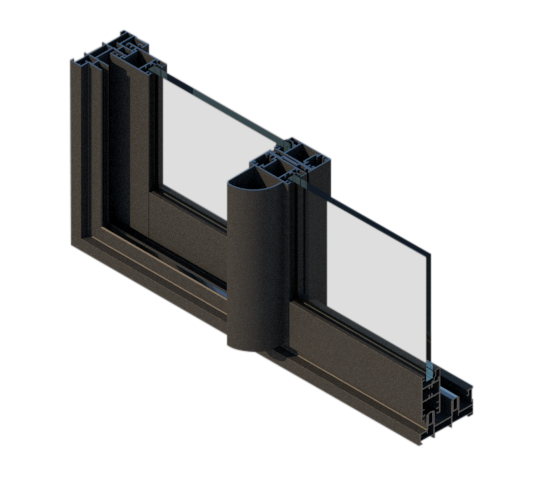

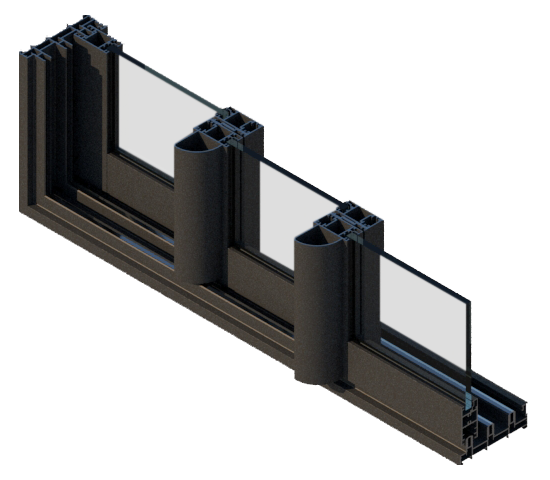

Elegance 2 Rails

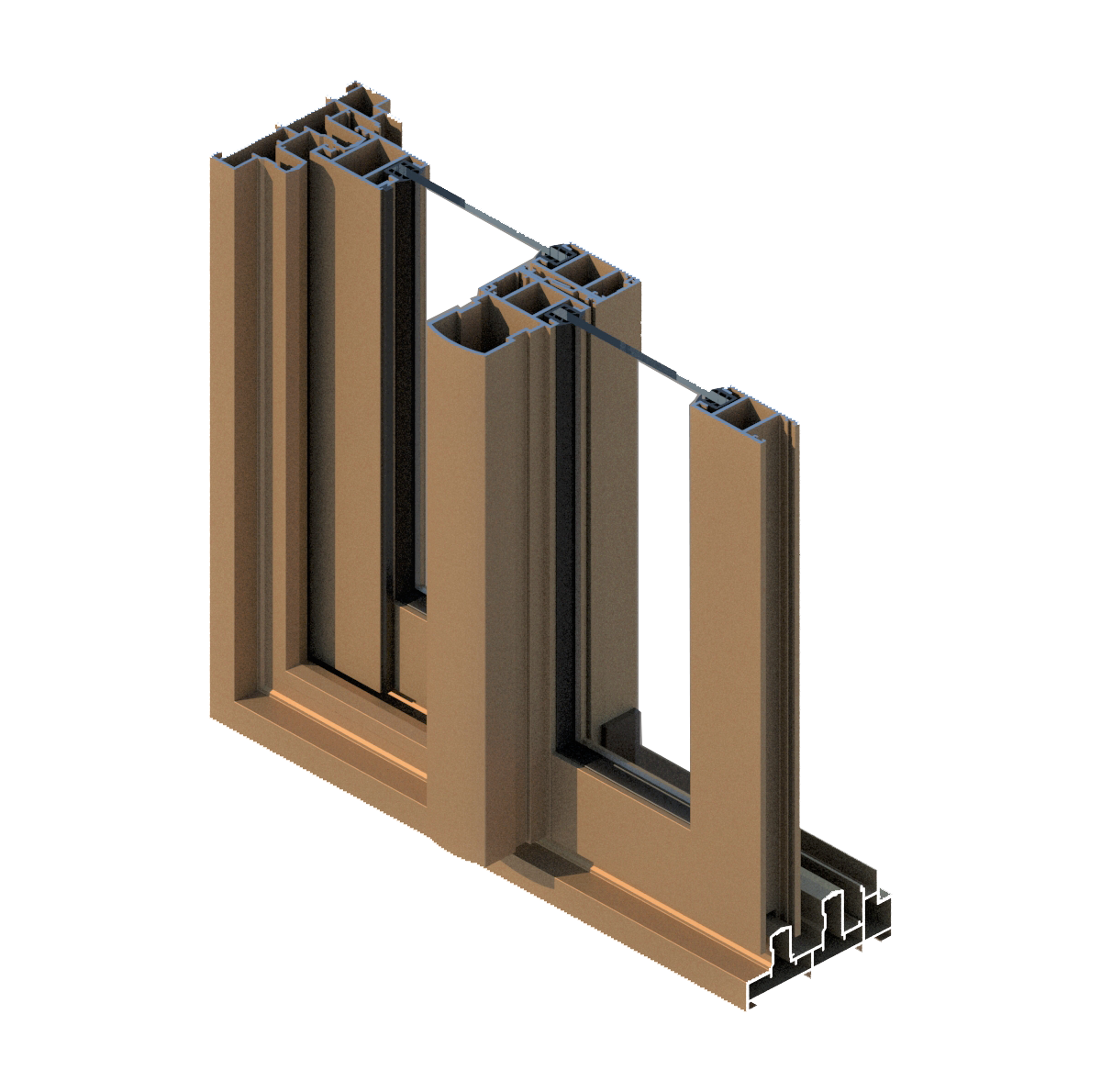

Eco 2 Rails

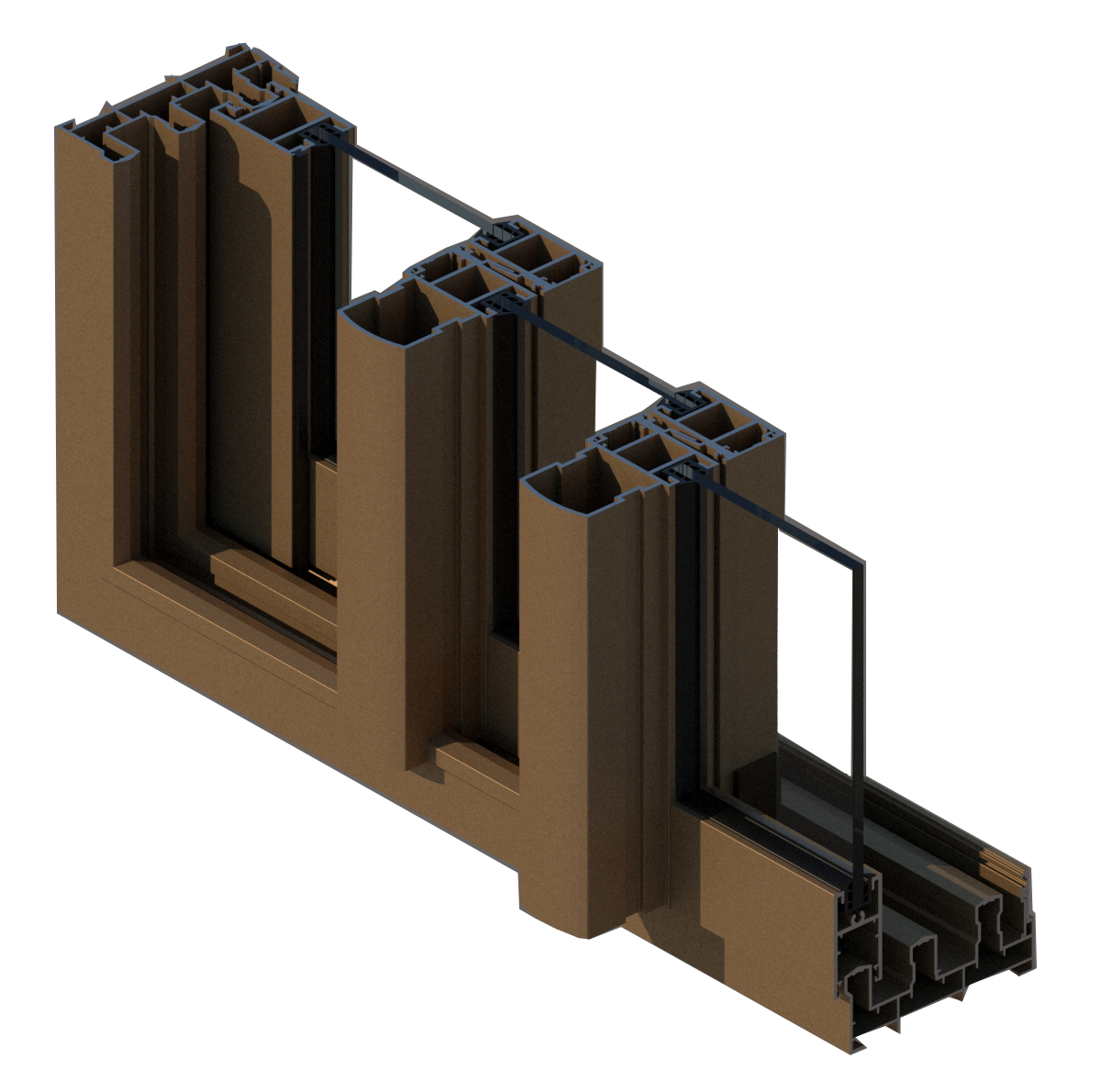

Eco 3 Rails
Eco System Series
Is an aluminum system used for sliding door and window to be higher 2.7 Meter that can support a total weight of 100 kilograms per door.
Can support glass thickness up to 15 mm. With aluminum thickness 2.0 mm. The width of the door frame 50 mm, the frame width 100 mm. for 2 rails and 102 mm. for 3 rails. The highlight of the product is beautiful, durable to use with water drainage system and tamper prevention, suitable for all types of houses or buildings.

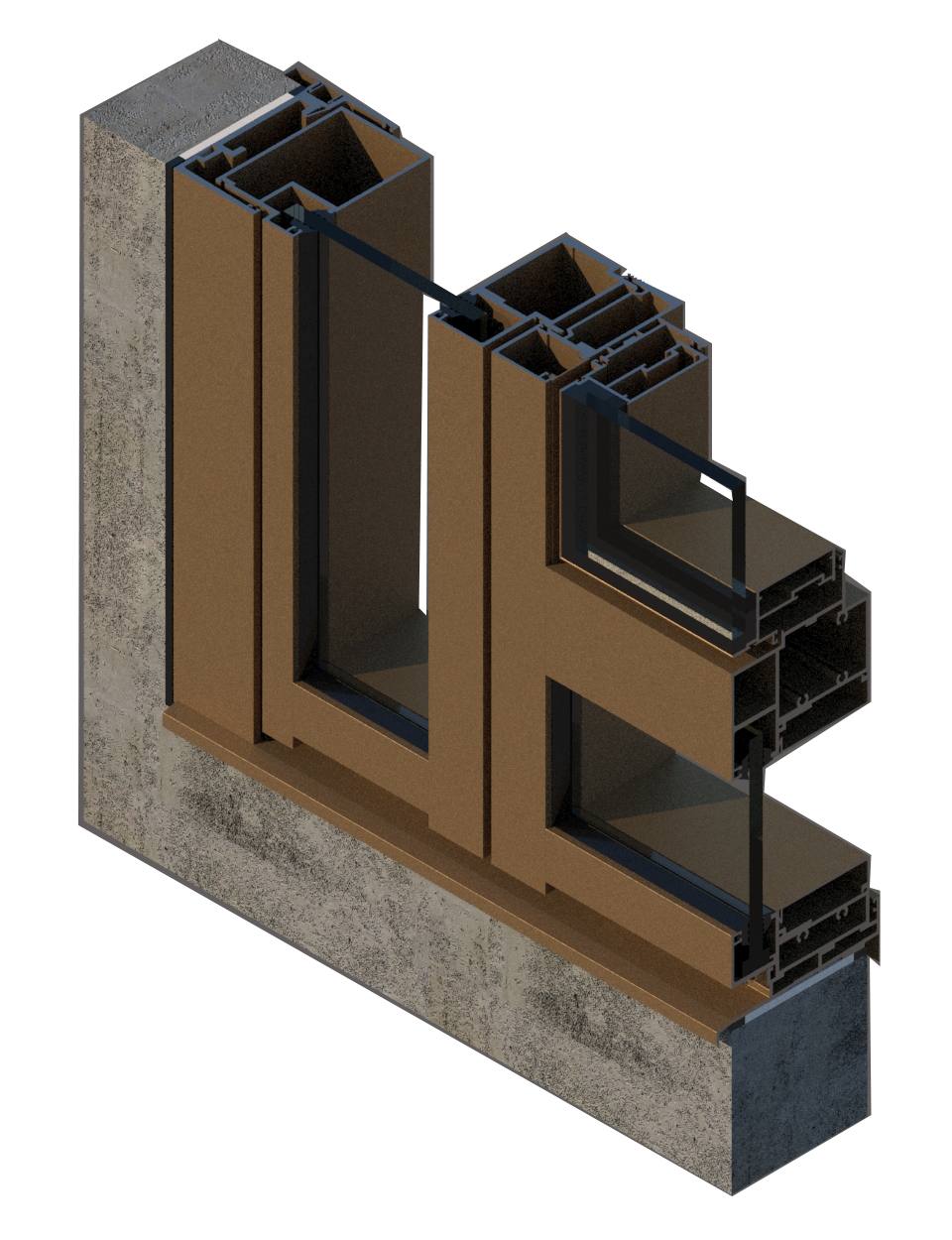

New Innovation Series
We have developed new system of aluminiums installation in order to meet customers’ demand where this new system improves productivity of our production.
Currently, we have 2 new systems
1. Aluminium Pre-cast Concrete: a system where aluminium frame is produced simultaneously with Pre-cast sheet.
2. Semi Unitized: Aluminium is pre-produced as a finished unit and can be installed at construction site instantly.
